uk.ac.ed.epcc.safe.accounting.parsers

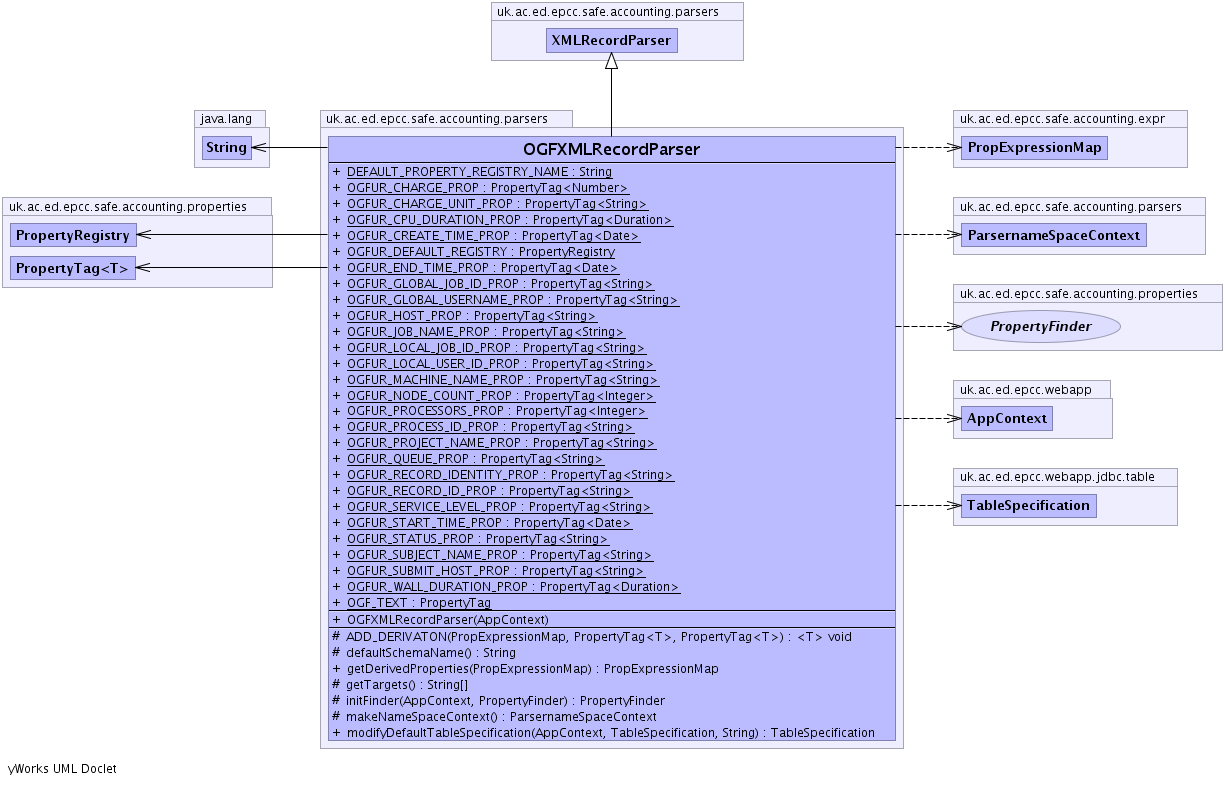

Class OGFXMLRecordParser

java.lang.Object

uk.ac.ed.epcc.safe.accounting.update.AbstractPropertyContainerUpdater

uk.ac.ed.epcc.safe.accounting.update.AbstractPropertyContainerParser

uk.ac.ed.epcc.safe.accounting.update.BaseParser

uk.ac.ed.epcc.safe.accounting.update.BatchParser

uk.ac.ed.epcc.safe.accounting.parsers.XMLRecordParser

uk.ac.ed.epcc.safe.accounting.parsers.OGFXMLRecordParser

All Implemented Interfaces:

PropertyContainerParser, PropertyContainerUpdater, uk.ac.ed.epcc.webapp.Contexed

Direct Known Subclasses:

NGSXMLRecordParser

public class OGFXMLRecordParser
extends XMLRecordParser

Parser for OGF usage records. This parser is intended to parse documents based on document GFD.098 published by the Open Grid Forum (OGF). The document specifies an XML format for OGF usage records. This parser parses such XML documents and converts them into SAFE's internal format.

Field Summary

Fields

Modifier and Type	Field and Description
static java.lang.String	DEFAULT_PROPERTY_REGISTRY_NAME Name of the registry used to store UR extensionProperties generated from the config extensionProperties
static PropertyTag	OGF_TEXT
static PropertyTag<java.lang.Number>	OGFUR_CHARGE_PROP
static PropertyTag<java.lang.String>	OGFUR_CHARGE_UNIT_PROP
static PropertyTag<uk.ac.ed.epcc.webapp.model.data.Duration>	OGFUR_CPU_DURATION_PROP
static PropertyTag<java.util.Date>	OGFUR_CREATE_TIME_PROP
static PropertyRegistry	OGFUR_DEFAULT_REGISTRY The property registry that holds all the default property tags used by UR extensionProperties.
static PropertyTag<java.util.Date>	OGFUR_END_TIME_PROP
static PropertyTag<java.lang.String>	OGFUR_GLOBAL_JOB_ID_PROP
static PropertyTag<java.lang.String>	OGFUR_GLOBAL_USERNAME_PROP There seems to be some confusion in OGF documents about the capitalisation of this element as the document gives GlobalUsername but the xsd schema in common use uses GlobalUserName.
static PropertyTag<java.lang.String>	OGFUR_HOST_PROP
static PropertyTag<java.lang.String>	OGFUR_JOB_NAME_PROP
static PropertyTag<java.lang.String>	OGFUR_LOCAL_JOB_ID_PROP
static PropertyTag<java.lang.String>	OGFUR_LOCAL_USER_ID_PROP
static PropertyTag<java.lang.String>	OGFUR_MACHINE_NAME_PROP
static PropertyTag<java.lang.Integer>	OGFUR_NODE_COUNT_PROP
static PropertyTag<java.lang.String>	OGFUR_PROCESS_ID_PROP
static PropertyTag<java.lang.Integer>	OGFUR_PROCESSORS_PROP
static PropertyTag<java.lang.String>	OGFUR_PROJECT_NAME_PROP
static PropertyTag<java.lang.String>	OGFUR_QUEUE_PROP
static PropertyTag<java.lang.String>	OGFUR_RECORD_ID_PROP
static PropertyTag<java.lang.String>	OGFUR_RECORD_IDENTITY_PROP
static PropertyTag<java.lang.String>	OGFUR_SERVICE_LEVEL_PROP
static PropertyTag<java.util.Date>	OGFUR_START_TIME_PROP
static PropertyTag<java.lang.String>	OGFUR_STATUS_PROP
static PropertyTag<java.lang.String>	OGFUR_SUBJECT_NAME_PROP
static PropertyTag<java.lang.String>	OGFUR_SUBMIT_HOST_PROP
static PropertyTag<uk.ac.ed.epcc.webapp.model.data.Duration>	OGFUR_WALL_DURATION_PROP

Fields inherited from class uk.ac.ed.epcc.safe.accounting.update.BatchParser

ACCOUNT_PROP, batch, BATCH_SCRIPT_PROP, CPU_WAIT_PROP, EXPECTED_FINISH, JOB_ID_PROP, JOB_NAME_PROP, NODE_COUNT_PROP, PARTITION_PROP, PROC_COUNT_PROP, QUEUE_PROP, REQUEST_ACCURACY_PROP, REQUESTED_CPUS_PROP, REQUESTED_WALLCLOCK_PROP, RESIDENCY_PROP, SERIAL_PROP, SLOWDOWN_PROP, SUBJOB_PROP, SUBMITTED_PROP, SUBMITTED_TIMESTAMP, SUCCESS_PROP, TIME_PROP, WAIT_PROP, WALLCLOCK_PROP

Fields inherited from class uk.ac.ed.epcc.safe.accounting.update.AbstractPropertyContainerParser

DUPLICATE_KEY

Constructor Summary

Constructors

Constructor and Description
OGFXMLRecordParser(uk.ac.ed.epcc.webapp.AppContext context)

Method Summary

Methods

Modifier and Type	Method and Description
protected <T> void	ADD_DERIVATON(PropExpressionMap map, PropertyTag<T> p1, PropertyTag<T> p2) Private method used to declare two PropertyTags to be equal to each other.
protected java.lang.String	defaultSchemaName() Default Schema to use when none set via properties
PropExpressionMap	getDerivedProperties(PropExpressionMap previous) return a set of derived property definitions.
protected java.lang.String[]	getTargets()
protected PropertyFinder	initFinder(uk.ac.ed.epcc.webapp.AppContext context, PropertyFinder prev) First stage of the initFinder process.
protected ParsernameSpaceContext	makeNameSpaceContext() This is used for namespace resolution In particular for the Xpath expressions used by the parser.
uk.ac.ed.epcc.webapp.jdbc.table.TableSpecification	modifyDefaultTableSpecification(uk.ac.ed.epcc.webapp.AppContext c, uk.ac.ed.epcc.webapp.jdbc.table.TableSpecification initial, java.lang.String table_name) Modify the default table specification if appropriate A null specification denotes that a table should not be auto-created.

Methods inherited from class uk.ac.ed.epcc.safe.accounting.parsers.XMLRecordParser

endParse, getContext, getSplitter, initFinder, parse, postProcess, splitRecords, startParse

Methods inherited from class uk.ac.ed.epcc.safe.accounting.update.BaseParser

readDouble, readInteger, readLong, readTime

Methods inherited from class uk.ac.ed.epcc.safe.accounting.update.AbstractPropertyContainerParser

getDefaultUniqueProperties, unique

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Methods inherited from interface uk.ac.ed.epcc.safe.accounting.update.PropertyContainerParser

getDefaultUniqueProperties

Field Detail

DEFAULT_PROPERTY_REGISTRY_NAME

public static final java.lang.String DEFAULT_PROPERTY_REGISTRY_NAME

Name of the registry used to store UR extensionProperties generated from the config extensionProperties

See Also:

Constant Field Values

OGFUR_DEFAULT_REGISTRY

public static final PropertyRegistry OGFUR_DEFAULT_REGISTRY

The property registry that holds all the default property tags used by UR extensionProperties.

OGFUR_RECORD_IDENTITY_PROP

@Path(value="//ur:RecordIdentity")
public static final PropertyTag<java.lang.String> OGFUR_RECORD_IDENTITY_PROP

OGFUR_CREATE_TIME_PROP

@Path(value="//ur:RecordIdentity/@ur:createTime")
@OptionalTable
public static final PropertyTag<java.util.Date> OGFUR_CREATE_TIME_PROP

OGFUR_RECORD_ID_PROP

@Path(value="//ur:RecordIdentity/@ur:recordId")
@AutoTable(unique=true,
           length=128)
public static final PropertyTag<java.lang.String> OGFUR_RECORD_ID_PROP

OGFUR_GLOBAL_JOB_ID_PROP

@Path(value="//ur:GlobalJobId")
@AutoTable
public static final PropertyTag<java.lang.String> OGFUR_GLOBAL_JOB_ID_PROP

OGFUR_LOCAL_JOB_ID_PROP

@Path(value="//ur:LocalJobId")
@AutoTable
public static final PropertyTag<java.lang.String> OGFUR_LOCAL_JOB_ID_PROP

OGFUR_PROCESS_ID_PROP

@Path(value="//ur:ProcessId")
@OptionalTable(length=256)
public static final PropertyTag<java.lang.String> OGFUR_PROCESS_ID_PROP

OGFUR_GLOBAL_USERNAME_PROP

@Path(value="//ur:GlobalUserName|//ur:GlobalUsername")
@AutoTable(length=512)
public static final PropertyTag<java.lang.String> OGFUR_GLOBAL_USERNAME_PROP

There seems to be some confusion in OGF documents about the capitalisation of this element as the document gives GlobalUsername but the xsd schema in common use uses GlobalUserName. Therefore this parser tries to recognise either but users will have to provide an alternative schema for the GlobalUsername form to validate.

OGFUR_LOCAL_USER_ID_PROP

@Path(value="//ur:LocalUserId")
@AutoTable
public static final PropertyTag<java.lang.String> OGFUR_LOCAL_USER_ID_PROP

OGFUR_SUBJECT_NAME_PROP

@Path(value="//ur:UserIdentity/xd:KeyInfo/xd:X509Data/xd:X509SubjectName")
@AutoTable(length=512)
public static final PropertyTag<java.lang.String> OGFUR_SUBJECT_NAME_PROP

OGFUR_CHARGE_PROP

@Path(value="//ur:Charge")
@OptionalTable
public static final PropertyTag<java.lang.Number> OGFUR_CHARGE_PROP

OGFUR_CHARGE_UNIT_PROP

@Path(value="//ur:Charge/@ur:unit")
@OptionalTable
public static final PropertyTag<java.lang.String> OGFUR_CHARGE_UNIT_PROP

OGFUR_END_TIME_PROP

@Path(value="//ur:EndTime")
@AutoTable(unique=true)
public static final PropertyTag<java.util.Date> OGFUR_END_TIME_PROP

OGFUR_HOST_PROP

@Path(value="//ur:Host")
@OptionalTable(length=512)
public static final PropertyTag<java.lang.String> OGFUR_HOST_PROP

OGFUR_JOB_NAME_PROP

@Path(value="//ur:JobName")
@AutoTable(length=128)
public static final PropertyTag<java.lang.String> OGFUR_JOB_NAME_PROP

OGFUR_MACHINE_NAME_PROP

@Path(value="//ur:MachineName")
@OptionalTable(length=128)
public static final PropertyTag<java.lang.String> OGFUR_MACHINE_NAME_PROP

OGFUR_PROJECT_NAME_PROP

@Path(value="//ur:ProjectName")
@OptionalTable(length=128)
public static final PropertyTag<java.lang.String> OGFUR_PROJECT_NAME_PROP

OGFUR_QUEUE_PROP

@Path(value="//ur:Queue")
@AutoTable
public static final PropertyTag<java.lang.String> OGFUR_QUEUE_PROP

OGFUR_START_TIME_PROP

@Path(value="//ur:StartTime")
@AutoTable
public static final PropertyTag<java.util.Date> OGFUR_START_TIME_PROP

OGFUR_STATUS_PROP

@Path(value="//ur:Status")
@AutoTable
public static final PropertyTag<java.lang.String> OGFUR_STATUS_PROP

OGFUR_SUBMIT_HOST_PROP

@Path(value="//ur:SubmitHost")
@OptionalTable(length=128)
public static final PropertyTag<java.lang.String> OGFUR_SUBMIT_HOST_PROP

OGFUR_WALL_DURATION_PROP

@Path(value="//ur:WallDuration")
@OptionalTable(target=java.lang.Long.class)
public static final PropertyTag<uk.ac.ed.epcc.webapp.model.data.Duration> OGFUR_WALL_DURATION_PROP

OGFUR_CPU_DURATION_PROP

@Path(value="//ur:CpuDuration")
@OptionalTable(target=java.lang.Long.class)
@AutoTable
public static final PropertyTag<uk.ac.ed.epcc.webapp.model.data.Duration> OGFUR_CPU_DURATION_PROP

OGFUR_NODE_COUNT_PROP

@Path(value="//ur:NodeCount")
@AutoTable(target=java.lang.Integer.class)
public static final PropertyTag<java.lang.Integer> OGFUR_NODE_COUNT_PROP

OGFUR_PROCESSORS_PROP

@Path(value="//ur:Processors")
@AutoTable(target=java.lang.Integer.class)
public static final PropertyTag<java.lang.Integer> OGFUR_PROCESSORS_PROP

OGFUR_SERVICE_LEVEL_PROP

@Path(value="//ur:ServiceLevel")
@OptionalTable
public static final PropertyTag<java.lang.String> OGFUR_SERVICE_LEVEL_PROP

OGF_TEXT

@AutoTable(length=1024)
public static final PropertyTag OGF_TEXT

Constructor Detail

OGFXMLRecordParser

public OGFXMLRecordParser(uk.ac.ed.epcc.webapp.AppContext context)

Method Detail

ADD_DERIVATON

protected <T> void ADD_DERIVATON(PropExpressionMap map,
                     PropertyTag<T> p1,
                     PropertyTag<T> p2)

Private method used to declare two PropertyTags to be equal to each other. Each of the two tags specified is added to the map with one as an expression of the other.

Throws:

PropertyCastException

Type Parameters:

T - The type of PropertyTag each tag is

Parameters:

p1 - The PropertyTag that is equivalent to p2

p2 - The PropertyTag that is equivalent to p1

getDerivedProperties

public PropExpressionMap getDerivedProperties(PropExpressionMap previous)

Description copied from interface: PropertyContainerUpdater

return a set of derived property definitions. Each derived property is defined in terms of a simple expression over other properties (that may themselves be derived properties).

Definitions are allowed for properties that are also generated directly in the parse phase. In this case the parse value should always be used by preference and the derived definition only provides a fall-back implementation if the parse value is unavailable. For example if not persisted in the database layer. This allows one parser/policy to specify a default implementation as a derived property definition which is then overridden by having the same property generated in a parse method of a different policy/parser

Specified by:

getDerivedProperties in interface PropertyContainerUpdater

Overrides:

getDerivedProperties in class BatchParser

Parameters:

previous - Previous definitions

Returns:

Map modified map

makeNameSpaceContext

protected ParsernameSpaceContext makeNameSpaceContext()

Description copied from class: XMLRecordParser

This is used for namespace resolution In particular for the Xpath expressions used by the parser. If a sub-class uses name-spaces in the Xpath then override this method to add them to the NameSpaceContext

Overrides:

makeNameSpaceContext in class XMLRecordParser

Returns:

initFinder

protected PropertyFinder initFinder(uk.ac.ed.epcc.webapp.AppContext context,
                        PropertyFinder prev)

Description copied from class: XMLRecordParser

First stage of the initFinder process. This only generates the PropertyFinder that is used by the normal initFinder call

Overrides:

initFinder in class XMLRecordParser

Returns:

defaultSchemaName

protected java.lang.String defaultSchemaName()

Description copied from class: XMLRecordParser

Default Schema to use when none set via properties

Overrides:

defaultSchemaName in class XMLRecordParser

Returns:

modifyDefaultTableSpecification

public uk.ac.ed.epcc.webapp.jdbc.table.TableSpecification modifyDefaultTableSpecification(uk.ac.ed.epcc.webapp.AppContext c,
                                                                                 uk.ac.ed.epcc.webapp.jdbc.table.TableSpecification initial,
                                                                                 java.lang.String table_name)

Description copied from interface: PropertyContainerUpdater

Modify the default table specification if appropriate A null specification denotes that a table should not be auto-created. Most work is usually done by the parser (modifying a blank or minimal specification) A policy may alo make changes if it is pre-configured before the table is created. Normally policies are added to an existing table where this method is not relevant.

Specified by:

modifyDefaultTableSpecification in interface PropertyContainerUpdater

Overrides:

modifyDefaultTableSpecification in class AbstractPropertyContainerParser

Parameters:

c - AppContext

initial - TableSpecification or null

Returns:

modified TableSpecification

getTargets

protected java.lang.String[] getTargets()

Overrides:

getTargets in class XMLRecordParser
